Track Drive

We are recognized as one of the renowned manufacturers of Track Drive

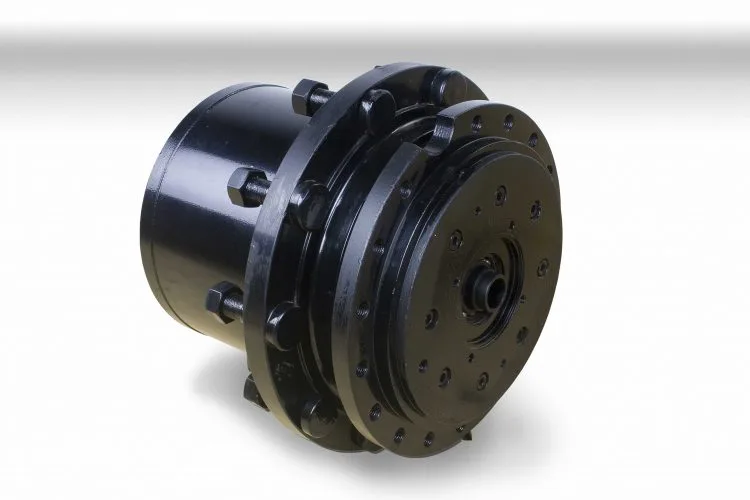

Track Drive

Top Gear Transmission has got a wide range of Track Drives (TD) series. These drives are used in Crawler driven machines such as Hydraulic Excavators, Drilling Rigs, Bulldozers , Cranes etc. Rugged design of these track drives with taper roller bearings are available with single stage, double stage or tripple stage depending upon speed ratios. With an facility of parking brake and Neutral arrangement if required.

Download Product Technical Catalogue

In this PDF you get the following information
INTRODUCTION
TECHNICAL DATA
SERVICE FACTOR
LUBRICATION
CONSTRUCTION INFO
SELECTION PROCEDURE

captcha

Specifications of Track Drive

Radial Load

Radial Load

10000 N to 500000 N

Torque

Torque

1500 Nm to 250000 Nm

Gear Ratio

Gear Ratio

5:1 to 300:1

Drive

Drive

Hydraulic/Mechanical/ Pneumatic/ Electric with various braking options

Key Features of Track Drive

  • Available with or without brake
  • Rotating housing with PCD to mount sprocket
  • can be Supplied with mounting bolts.
  • High radial load capacity due to taper roller bearings
  • Available in various reduction ratios
  • Supplied with mechanical seals
  • Mechanical parking arrangement with rachet and pawl
  • Provision for Neutral arrangement

BENEFITS OF Track Drive

High torque capacity

High load capacity

Ease of Maintenance

Compact design

Adaptable for various types of motors

PRODUCT APPLICATIONS OF Track Drive

    Mines and Minerals
  • Drilling Rigs

    Defence
  • Tanks
    Offroad Vehicles

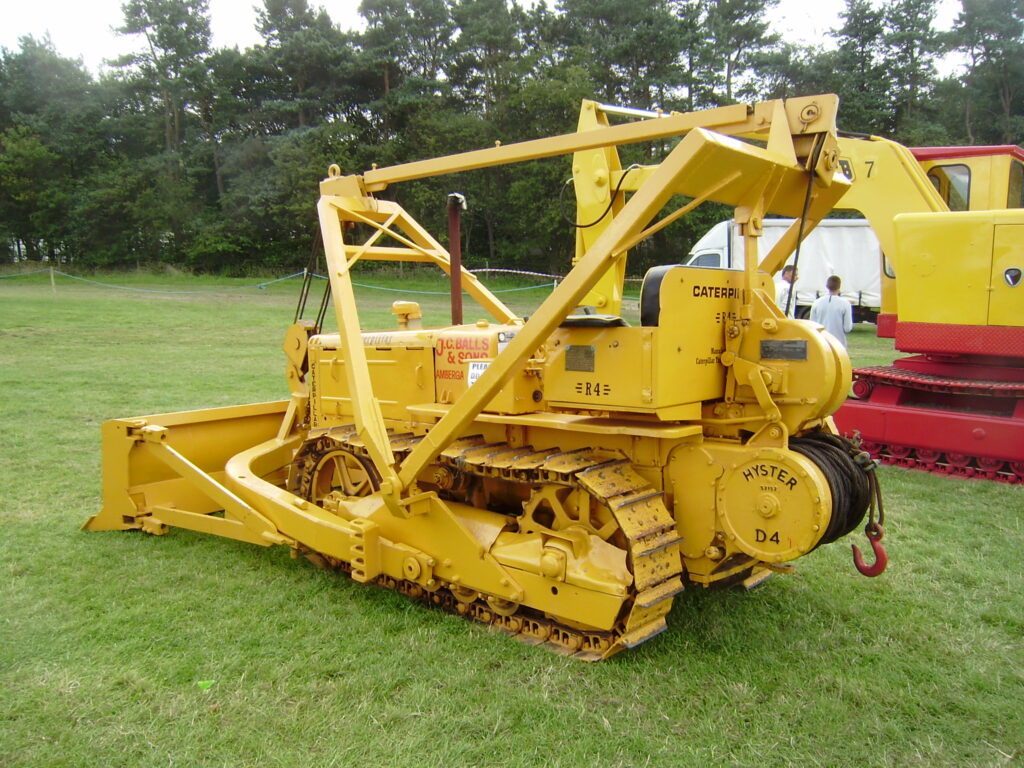

  • Buldozers

    Material Handling
  • Excavator

FAQ About Track Drive

Track drive is used for crawler driven vehicles and winches

We can supply track drive with our without brake

Duo Cone Seal is used in track drives

yes, we can provide track drive with neutral arrangement

Track drive has sprockets for driving chain whereas wheel hub has studs to mount on wheel rim.

Axial and radial loads are considered in tracked drive

Normally it is driven by Hydraulic motor and air motor in some cases they are driven mechanically as well.
