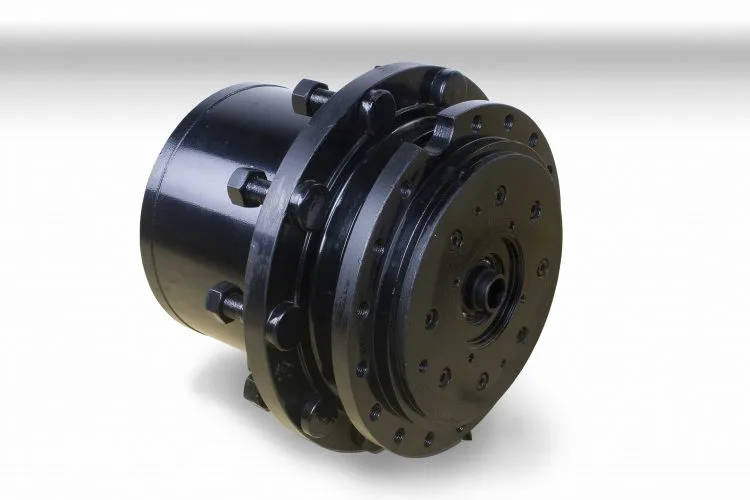

Track Drive
About
Top Gear Transmission Has Got A Wide Range Of Track Drives (TD) Series. These Drives Are Used In Crawler Driven Machines Such As Hydraulic Excavators, Drilling Rigs, Bulldozers , Cranes Etc. Rugged Design Of These Track Drives With Taper Roller Bearings Are Available With Single Stage, Double Stage Or Tripple Stage Depending Upon Speed Ratios. With An Facility Of Parking Brake And Neutral Arrangement If Required.
Specifications
Radial Load
10000 N to 500000 N
Torque Capacity
1500 Nm to 250000 Nm
Gear Ratio
5:1 to 300:1
Drive
Hydraulic/Mechanical/ Pneumatic/ Electric With Various Braking Options
Key Features
- Available With Or Without Brake
- Rotating Housing With PCD To Mount Sprocket
- Can Be Supplied With Mounting Bolts.
- High Radial Load Capacity Due To Taper Roller Bearings
- Available In Various Reduction Ratios
- Supplied With Mechanical Seals
- Mechanical Parking Arrangement With Ratchet And Pawl
- Provision For Neutral Arrangement
Benefits
High Torque Capacity
High Load Capacity
Ease Of Maintenance
Compact Design
Adaptable For Various Types Of Motors
Application
Defence
- Defence
Mines And Minerals
- Stacker Reclaimer
Material Handling
- Excavator
Off-Road Vehicles
- Bulldozers
