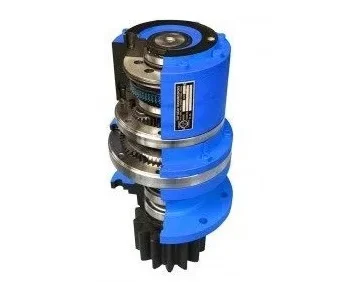

Slew Drives
About
Top Gear Has Designed Slew Drive Series To Enhance The Rotary Movement Of Various Equipment’s. Slew Drive Series Consists Of Wide Range Of Drives Suitable For Hydraulic And Electric Prime Mover With Inbuilt Parking Brakes Along With A Drive Pinion. Unique Feature Of Slew Drive Has Special Bearing To Take Care Of Inertial, Radial And Thrust Loads.
Specifications
Input
Hydraulic Motor Or Electric Motor
Torque Capacity
600 Nm to 200000 Nm
Gear Ratio
3.6 to 3000:1
Brake
Electromagnetic / Hydraulic Spring Loaded Multi Disc/ Thruster Brake
Key Features
- Output Shaft: Splined Or With Integral Pinion
- Flange Mounted
- Designed For High Radial And Thrust Loads.
- Rugged Design To Ensue Inertia Of Rotating Masses
- Suitable For Electric, Hydraulic As Well 90 Degree Coupled Prime MoverSuitable For Electric, Hydraulic As Well 90 Degree Coupled Prime MoverSuitable For Electric, Hydraulic As Well 90 Degree Coupled Prime Mover
- Output Shafts Supported By Heavy-Duty Capacity Bearings
- High Torque /Weight Ratio
- Mounting Locating Diameter Available With Eccentric Centrline Facility To Adjust Backlash Between Pinion & Bull Gear (Optional)
Benefits
Compact in size
CAN TRANSMIT HIGH TORQUE
Highly reliable
Application
Construction Machinery
- Tower cranes
- Excavators
Steel Plants
- Bucket Wheel Reclaimers
Mines And Minerals
- Stacker Reclaimer
Marine
- Ship Loaders
