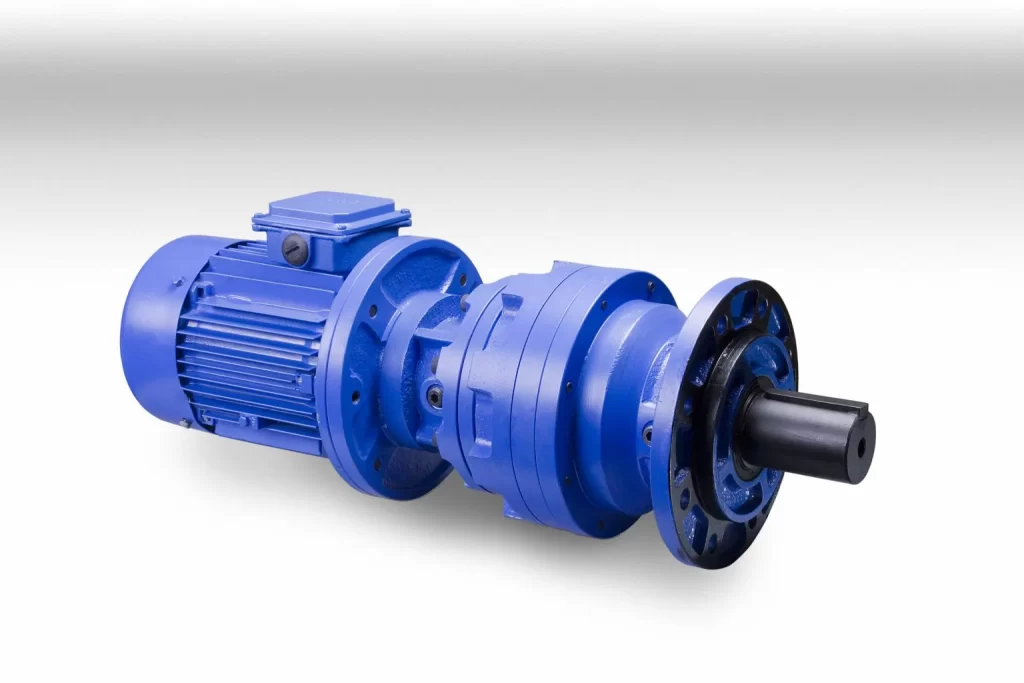

PLANETARY GEARED MOTOR

We are prominent manufacturers of planetary geared motor

PLANETARY GEARED MOTOR

Top Gear offers Modular design Planetary geared motor with a wide range of different variants suitable for various industrial applications. Geared motors are offered with IEC motors having ISI standard with IP55 protection & S 4 Class duty, 50 Hz & 440 Volts. The geared motor can be supplied along with electromagnetic brake too as per the demand. Special geared motors are also available as required.

Download Product Technical Catalogue

In this PDF you get the following information
INTRODUCTION
TECHNICAL DATA
SERVICE FACTOR
LUBRICATION
CONSTRUCTION INFO
SELECTION PROCEDURE

captcha

Specifications of planetary geared motor

Power

Power

0.17 kW to 75 kW

Torque Capacity

Torque Capacity

100 Nm to 1000 kNm

Speed

Speed

0.02 RPM to 400 RPM

Mounting

Mounting

Flange / Foot / Shaft

Key Features of planetary geared motor

  • Adaptable to IEC frame Motors – various frequency / voltage or any other special requirement can be meet
  • High torque/weight ratio
  • Modular Design
  • Backstop arrangement available on request
  • Input and output configuration and mounting available with wide range of options

Benefits OF planetary geared motor

Motor type & make supplied as per cutomers requirement

Individual motors can be replaced if required

Ease of Maintenance

Rugged Construction

Adaptable for various mounting positions

PRODUCT APPLICATIONS OF planetary geared motor

    Machine Tools
  • Plastic Machinery
  • Packaging Machinery
  • Waste Processing Machine
  • Brick Making Machine
  • Baking Machinery
  • Tea Making machinery
  • ESP Wrapping machine

    Textile Machinery
  • Jet Dyeing Machine
    Material Handling
  • Screw feeder
  • Screw Conveyors
  • Belt Conveyors
  • Ash Handling Conveyor
  • Bottle Conveyor
  • Coal Handling Conveyor
  • Chain Conveyors
  • Iron ore Handling Conveyor
    Construction Machinery
  • Bar/Pipe bending Machine
  • Screw conveyor
    Power Plant
  • Ash Handling conveyor
  • Coal Handling Conveyor
  • Rotary Air Lock Valve
  • Travelling Grate
  • Screw Conveyor
  • Screw Feeder
  • Baggase Feeder
  • Baggase Extractor
    Chemical, Paint and Pharma
  • Agitator
  • Reactor Vessel
  • Rotocon Blender
    Food/Grain
  • Elevator
  • Rotory Airlock Valve

FAQ About planetary geared motor

We offer planetary gearbox with foot, flange or shaft type of mounting

Prime mover can be electric motor, hydraulic motor or engine.

We provide planetary gearbox from 0.18 kW to 1000 kW

Normally we provide oil lubrication but in some cases depending upon applications we provide greece lubrication

Efficiency of planetary gearbox is 96 to 97% for 1st stage and it varies depending upon surface finish

Thermal rating relates to thermal capacity of gearbox.Thermal rating is continous power transmitted by a gearbox with splash lubrication and maximum oil temperature of 90 degree celcius at ambient temp of 25 degree celciusand input speed 1500 rpm.

Planetary Gearbox can be upto 6 or 8 stages having reduction ratio from 3 to 1 Million

Oil grade depends upon the speed and temperature. For low speed high viscosity oil is required whereas for high speeds low viscosity oil is required. Normally, ISO VG 220/320 is commonly used

For appropriate selection of planetary/bevel/worm gearbox following input data is required 1.Type,power and input speed of prime mover 2. Application of product where it is going to be used along with its operating hours and duty cycle. 3. Output speed or Gear ratio

Actual Service factor for selected model is ratio of rated torque(max torque transmitting capacity)
to generated torque(TORQUE GENRATECD DUE TOPRIMEMOVR.It has been introduced to take into account the characteristics and working hours per day of the driven machine. It depends upon application of product along with its operating hours and duty cycle

95 degree celcius (it may vary depending upon type of lubricant)

Bearings are selected as per size and application of gearbox. In normal gearboxes ball bearings are used. Where the thrust and radial loads are high Taper roller or spherical roller bearings are used.

Double Lip oil seals are used in this product
