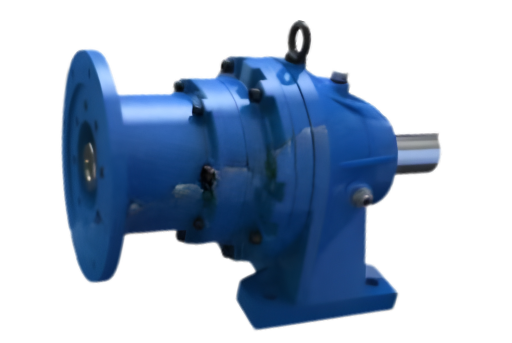

Planetary Gearbox

We are recognized as one of the renowned Planetary Gearbox Manufacturers in India.

Planetary Gearbox Manufacturer

Our continuous R&D and experience of more than two decades have enabled us to Cater the growing needs and requirements of various industrial applications by offering a wide series of modular design planetary gearboxes, with different Mountings (foot, flange, shaft) and different input and output configurations (Solid, Hollow, Splined, shrink disc etc.). High flexibility and customization to suit various mountings for particular applications, high efficiency, high torque to weight ratio (compact) and wide range of gear ratios have helped us to carve out our name as “Prominent Manufacturers of planetary gearboxes”.

Download Product Technical Catalogue

In this PDF you get the following information
INTRODUCTION
TECHNICAL DATA
SERVICE FACTOR
LUBRICATION
CONSTRUCTION INFO
SELECTION PROCEDURE

[cf7sr-simple-recaptcha]

Specifications of planetary gearbox

Power

Power

0.17 kW to 75 kW

Torque capacity

Torque capacity

100 Nm to 100000 Nm

Reduction Ratio

Reduction Ratio

3.6 to 100000:1

Mounting

Mounting

Flange / Foot / Shaft

Key Features of Planetary Gearbox

  • Can be offered in multiple input & output configurations.
  • Wide range of reduction ratios and torque selection
  • Modular construction
  • Interchangeability of parts
  • Co-axial drives
  • High overhang load capacity
  • Special series available with taper roller bearings to take care of high radial and thrust loads

BENEFITS OF Planetary GEARBOX

High torque

Compact Drives

Highly efficient drives

High reduction ratios possible

EASY MAINTENANCE

Low noise level

High Customization

Product Applications of Planetary Gearbox

    Chemical, Paint and Pharma
  • Agitator
  • Rotary Vaccum Dryer
  • Rotary Drum Filter
  • Ribbon Blender
  • Reactor Vessel
  • Rotocon Blender
  • Sulphonator
  • Rotary Air Lock Valve

    Textile Machinery
  • Drum Washer
    Material Handling
  • Screw feeder
  • Screw Conveyors
  • Belt Conveyors
  • Ash Handling Conveyor
  • Bottle Conveyor
  • Coal Handling Conveyor
  • Chain Conveyors
  • Iron ore Handling Conveyor

    Construction Machinery
  • Concrete Mixer
  • Concrete Finisher
    Steel Plants
  • Rolling Mill
  • Billet Conveyor
  • Reclaimer- Ore Handling
  • Ladle Tilting
  • Tundish Car Drive
  • Oscillator
  • Wire Feeder
  • Furnace Trolley Drive
    Machine Tools
  • Plastic Machinery
  • Packaging Machinery
  • Waste Processing Machine
  • Brick Making Machine
  • Baking Machinery
  • Tea Making machinery
  • ESP Wrapping machine
    Power Plant
  • Ash Handling conveyor
  • Coal Handling Conveyor
  • Rotary Air Lock Valve
  • Travelling Grate
  • Screw Conveyor
  • Screw Feeder
  • Baggase Feeder
  • Baggase Extractor
    Sugar Industry
  • Cane pusher
  • Rake Elevator
  • Inter Rake Carrier
  • Bagasse Elevator
  • Main Bagasse Carrier
  • Return Bagasse Carrier
  • Magma Pumps
  • Elevator
  • Bag Handling Coneyors
    Mines and Minerals
  • Thikners & Clarifiers
  • Settler
  • Agitator
  • Spiral Classifier
    Wood working Machinery
  • Wood Peeling Machine
  • Rounder Machine
  • Cutter Machine
  • Wood chopper Machine
    Paper and Pulp
  • Pressurized Rectifier Roll Type
  • Shredder
  • Thickener
    Cement Industry
  • Aggregate Handling Conveyor
  • Apron Feeder
  • Conveyor
    Stone/Marble Industry
  • Sand Washer
  • Line Polisher Machine- Belt Conveyor
    Rubber Processing Machines
  • Tilt Discharge Dispersion Kneader
  • Mixing Mill
    Water Treatment
  • Aerators
  • Clarifiers
  • Sewage Water Treatment

FAQ About planetary gearbox

We offer planetary gearbox with foot, flange or shaft type of mounting

Prime mover can be electric motor, hydraulic motor or engine.

We provide planetary gearbox from 0.18 kW to 1000 kW

Normally we provide oil lubrication but in some cases depending upon applications we provide greece lubrication

Efficiency of planetary gearbox is 96 to 97% for 1st stage and it varies depending upon surface finish

Thermal rating relates to thermal capacity of gearbox.Thermal rating is continous power transmitted by a gearbox with splash lubrication and maximum oil temperature of 90 degree celcius at ambient temp of 25 degree celciusand input speed 1500 rpm.

Planetary Gearbox can be upto 6 or 8 stages having reduction ratio from 3 to 1 Million

Oil grade depends upon the speed and temperature. For low speed high viscosity oil is required whereas for high speeds low viscosity oil is required. Normally, ISO VG 220/320 is commonly used

For appropriate selection of planetary/bevel/worm gearbox following input data is required 1.Type,power and input speed of prime mover 2. Application of product where it is going to be used along with its operating hours and duty cycle. 3. Output speed or Gear ratio

Actual Service factor for selected model is ratio of rated torque(max torque transmitting capacity)
to generated torque(TORQUE GENRATECD DUE TOPRIMEMOVR.It has been introduced to take into account the characteristics and working hours per day of the driven machine. It depends upon application of product along with its operating hours and duty cycle

95 degree celcius (it may vary depending upon type of lubricant)

Bearings are selected as per size and application of gearbox. In normal gearboxes ball bearings are used. Where the thrust and radial loads are high Taper roller or spherical roller bearings are used.

Double Lip oil seals are used in this product
