Bevel planetary drives

We are recognized as one of the renowned manufacturers of bevel planetary drives.

Bevel Planetary Drives

Top gear has designed Bevel planetary drives taking into consideration its intended function to fit in given space constraint. Available in two different types of mountings, Foot and flange with different input and output configurations. Total Bevel planetary drive series is offered in 14 basic sizes.

Download Product Technical Catalogue

In this PDF you get the following information
INTRODUCTION
TECHNICAL DATA
SERVICE FACTOR
LUBRICATION
CONSTRUCTION INFO
SELECTION PROCEDURE

    [cf7sr-simple-recaptcha]

    Specifications of Bevel planetary drives

    Planetary Gearbox Power

    Power

    3.7 kw to 100 kw

    Planetary Gearbox Torque

    Torque Capacity

    1400 Nm to 1250000 Nm

    Planetary Gearbox Speed

    Speed Ratio

    12:1 to 10000:1

    Planetary Gearbox Mounting

    Mounting

    Foot / Flange / shaft

    Key Features of Bevel planetary drives

    • Right angle drive
    • Extended shaft available for encoder or brake mounting
    • Motor orientation in multi direction
    • Available in foot flange or shaft mounting
    • Mounting version with IEC hollow frame as well as solid input

    BENEFITS OF Bevel planetary drives

    Highest reduction possible in less space

    Best suitable for slow speed application & high torque requirement

    High Reliability

    High Customization level

    Product Applications of Bevel planetary drives

      Sugar Industry

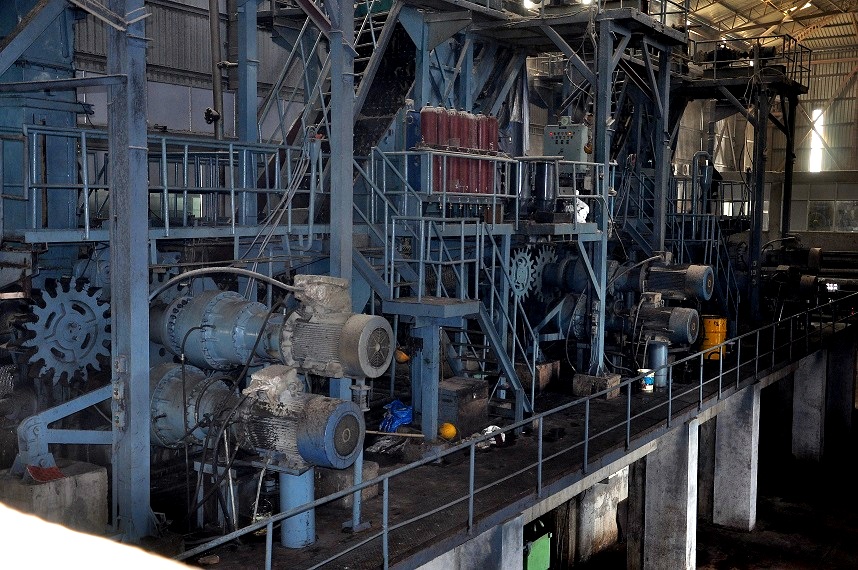

    • Shaft Mounted Mill Drive
    • Flat conveyors Cane carrier

      Steel Plant
    • Withdrawal Rollers

      Construction Machinery
    • Twin Shaft Mixer

    FAQ About Bevel planetary drives

    In bevel gearbox motor is oriented in 90 degree which gives the benefit of accomodating the drive in smaller space

    We offer planetary gearbox with foot, flange or shaft type of mounting

    Prime mover can be electric motor, hydraulic motor or engine.

    We provide planetary gearbox from 0.18 kW to 1000 kW

    Normally we provide oil lubrication but in some cases depending upon applications we provide greece lubrication

    Efficiency of planetary gearbox is 96 to 97% for 1st stage and it varies depending upon surface finish

    Thermal rating relates to thermal capacity of gearbox.Thermal rating is continous power transmitted by a gearbox with splash lubrication and maximum oil temperature of 90 degree celcius at ambient temp of 25 degree celciusand input speed 1500 rpm.

    Planetary Gearbox can be upto 6 or 8 stages having reduction ratio from 3 to 1 Million

    Oil grade depends upon the speed and temperature. For low speed high viscosity oil is required whereas for high speeds low viscosity oil is required. Normally, ISO VG 220/320 is commonly used

    For appropriate selection of planetary/bevel/worm gearbox following input data is required 1.Type,power and input speed of prime mover 2. Application of product where it is going to be used along with its operating hours and duty cycle. 3. Output speed or Gear ratio

    Actual Service factor for selected model is ratio of rated torque(max torque transmitting capacity)
    to generated torque(TORQUE GENRATECD DUE TOPRIMEMOVR.It has been introduced to take into account the characteristics and working hours per day of the driven machine. It depends upon application of product along with its operating hours and duty cycle

    95 degree celcius (it may vary depending upon type of lubricant)

    Bearings are selected as per size and application of gearbox. In normal gearboxes ball bearings are used. Where the thrust and radial loads are high Taper roller or spherical roller bearings are used.

    Double Lip oil seals are used in this product
